SUMO-HD32
Camera module
Sensor: 1/2” CMOS
Resolution: 1280 x 720
Sensitivity: 36.08 p (λ = 525 nm) (EMVA standard 1288)
S/N ratio: 53 dB
Video output signal: HD-SDI
Lens
Focus length: HD32C / 12,5 - 400 mm HD32D / 15,6 - 500 mm
Zoom: 32x optical
Field of view (H): HD32C WIDE: 29°40´x 17°20´; TELE: 0°59´x 0°34´ HD32D WIDE: 24°41´x 14°04´; TELE: 0°49´x 0°27´
Others
Control interface: RS232
Power supply: 24 V DC (18 V – 32 V)
Comsuption: 30 W (typical), 75 W (with heater)
Storage temp.: -35 °C to +60 °C
Envir. protection: IP66
Weight: 10 kg
Dimension (L × W × H): 527 x 198 x 184 mm
Complies with: EN 61000, MIL-STD-810, MIL-STD-461
EN: sumo_hd32.pdf
Примечение:
Технические характеристики могут быть изменены без предварительного уведомления.
Фото представлены только для иллюстрации.
Camera SUMO-HD32 is a color camera intended for middle-range surveillance applications. High resolution sensor in combination with 32x zoom lens delivers a high quality video. A lens with a large entrance aperture ensures sufficient light conditions for a high quality video.
The camera SUMO-HD32 can be delivered in two different versions. Each version incorporates the lens with a different focal length.

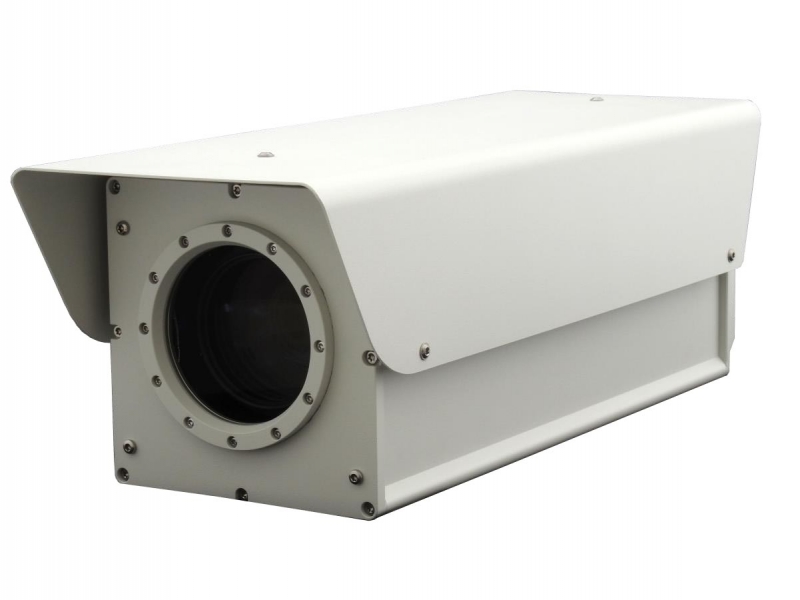

The camera with its accessories is placed in a sealed ruggedized environmental housing to protect optical and electronical parts. A camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.
Functions: autofocus, dynamic range enhancement, image stabilization, motion detection, OSD etc.
The camera SUMO-HD32 can be delivered in two different versions. Each version incorporates the lens with a different focal length.
The camera with its accessories is placed in a sealed ruggedized environmental housing to protect optical and electronical parts. A camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.
Functions: autofocus, dynamic range enhancement, image stabilization, motion detection, OSD etc.
