SUMO-HD32 LITE
Camera module
Sensor: 1/3” Progressive Scan CMOS
Resolution: 1920 x 1080
Sensitivity: 0.2 lx (F1.2/AGC : MAX)
S/N ratio: 50 dB
Video output signal: HD-SDI
Lens
Focus length: 12,5 - 400 mm
Zoom: 32x optical
Field of view (H): WIDE: 23°4´ x 13°8´ TELE: 0°45´ x 0°26´
Others
Control interface: RS232
Power supply: 24 V DC (18 V – 32 V)
Comsuption: 10 W (typical), 75 W (with heater)
Storage temp.: -40 °C to +60 °C
Envir. protection: IP66
Weight: 10 kg
Dimension (L × W × H): 520 x 198 x 184 mm
Complies with: EN 61000, MIL-STD-810, MIL-STD-461
Примечение:
Технические характеристики могут быть изменены без предварительного уведомления.
Фото представлены только для иллюстрации.

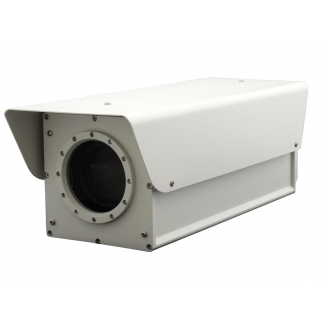

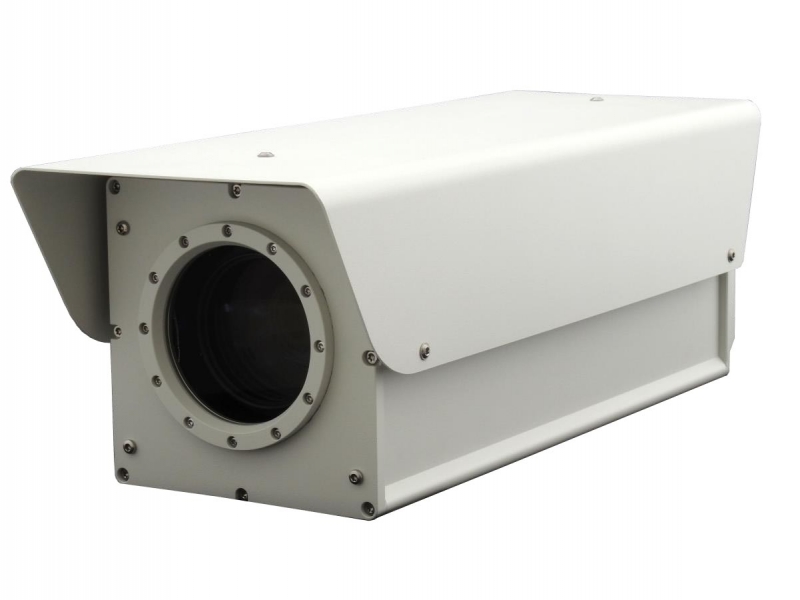

Camera SUMO-HD32 LITE is a full HD color camera intended for middle-range surveillance applications. A high resolution sensor in combination with a 32x continuous zoom lens delivers a high quality video. The lens with a large entrance aperture ensures sufficient light conditions for a high quality video.
The camera with its accessories is placed in a sealed ruggedized environmental enclosure to protect optical and electronical parts. A camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.
Functions: Autofocus, Automatic Gain Control (AGC), Back Light Compensation (BLC), Wide Dynamic Range/HDR, White Balance, AutoIris etc.
The camera with its accessories is placed in a sealed ruggedized environmental enclosure to protect optical and electronical parts. A camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.
Functions: Autofocus, Automatic Gain Control (AGC), Back Light Compensation (BLC), Wide Dynamic Range/HDR, White Balance, AutoIris etc.
