Camera module

Sensor: 1/2” CMOS
Resolution: 1280 x 720
Sensitivity: 36.08 p (λ = 525 nm) (EMVA standard 1288)
S/N ratio: 53 dB
Video output signal: HD-SDI


Focus length: 16,7 - 1000 mm
Zoom: 60x optical, extender - 2x
Field of view (H): WIDE: 22°35´ × 13°6´
TELE: 0°24´ × 0°14´ With extender: WIDE: 11°30´ x 6°32´ TELE: 0°12´ x 0°7´


Control interface: RS232
Power supply: 24 V DC (18 V – 32 V)
Comsuption: 32 W (typical), 100 W (with heater)
Operating temp.: -32 °C to +55 °C
Storage temp.: -35 °C to +60 °C
Envir. protection: IP66
Weight: 16 kg
Dimension (L × W × H): 700 x 249 x 204 mm
Complies with: EN 61000, MIL-STD-810, MIL-STD-461

Технические характеристики могут быть изменены без предварительного уведомления.

Фото представлены только для иллюстрации.

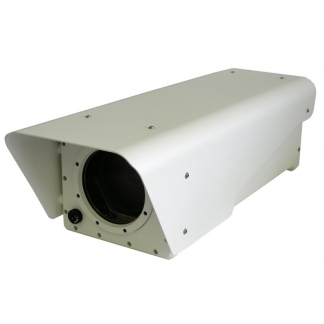

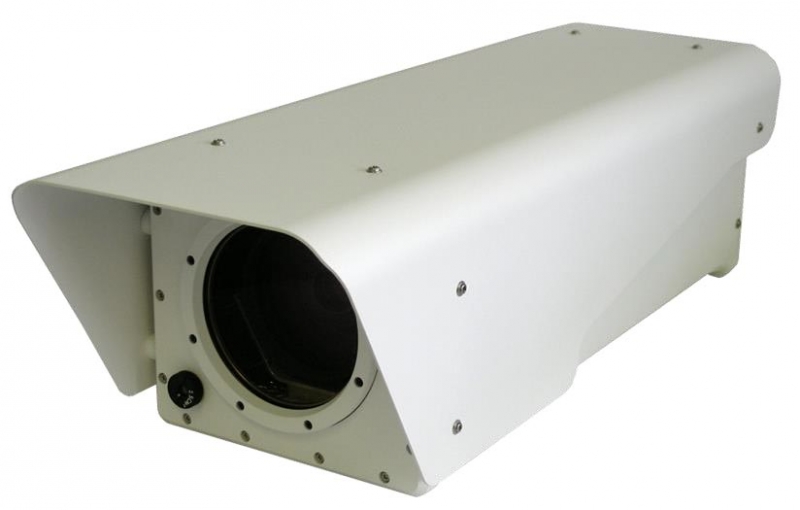

Camera SUMO-HD60 is a high resolution color camera intended for long-range surveillance applications. A high resolution sensor in combination with a 60x zoom lens delivers a high quality video. Magnification of the system can be increased twice by inbuilt extender, in total 120x. The lens with a large entrance aperture ensures sufficient light conditions for a high quality video.

The camera with its accessories is placed in a sealed ruggedized environmental housing to protect optical and electronical parts. A camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.

Functions: autofocus, range enhancement, image stabilization, motion detection, OSD etc.
