SUMO-HD60 LITE
Camera module
Sensor: 1/3” Progressive Scan CMOS
Resolution: 1920 x 1080
Sensitivity: 0.24 lx (F1.2/AGC : MAX)
S/N ratio: 50 dB
Video output signal: HD-SDI
Lens
Focus length: 16,7 - 1000 mm (*)
Zoom: 60x optical
Field of view (H): WIDE: 15°10’ x 8°45’ (*) TELE: 0°16‘ x 0°9‘ (*)
Others
Control interface: RS232
Power supply: 24 V DC (18 V – 32 V)
Comsuption: 12 W (typical), 100 W (with heater)
Storage temp.: -35 °C to +60 °C
Envir. protection: IP66
Weight: 17 kg
Dimension (L × W × H): 700 x 249 x 204 mm
Complies with: EN 61000, MIL-STD-810, MIL-STD-461
Примечение:
* камера позволяет устанавливать аппаратные ограничения
Технические характеристики могут быть изменены без предварительного уведомления.
Фото представлены только для иллюстрации.

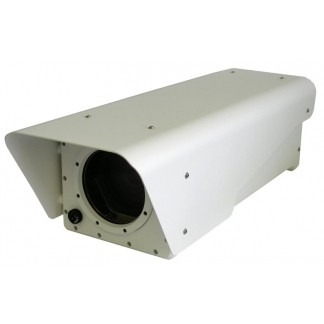

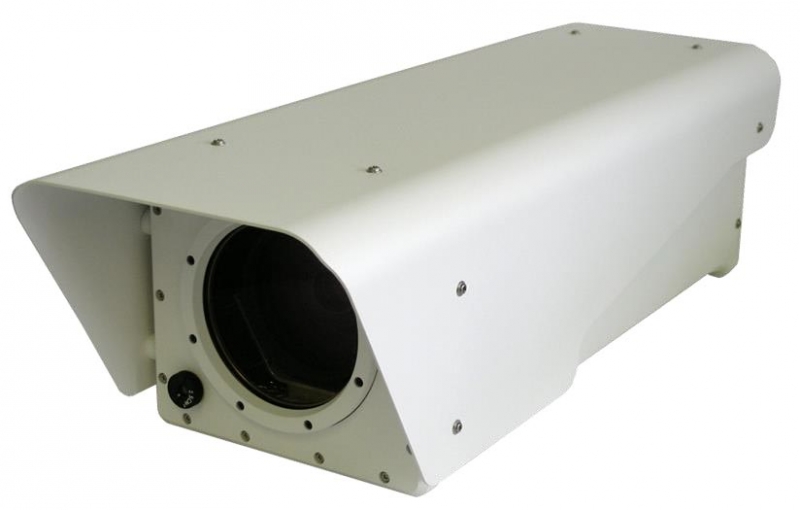

Camera SUMO-HD60 LITE is a high resolution color camera intended for long-range surveillance applications. A high resolution sensor in combination with 60x zoom lens delivers a high quality video. Magnification of the system can be increased twice by an inbuilt extender, in total 120x. The lens with a large entrance aperture ensures sufficient light conditions for a high quality video and high resolution.
The camera with its accessories is placed in a sealed ruggedized environmental housing to protect optical and electronical parts. A camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.
Functions: autofocus, automatic gain control (AGC), back light compensation (BLC), wide dynamic range / HDR, white balance, autoIris etc.
The camera with its accessories is placed in a sealed ruggedized environmental housing to protect optical and electronical parts. A camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.
Functions: autofocus, automatic gain control (AGC), back light compensation (BLC), wide dynamic range / HDR, white balance, autoIris etc.
